How to Troubleshoot and Fix a Red Light on Your Motherboard

How to, Guides, Motherboard

Motherboard

Pic Courtesy: Pinterest

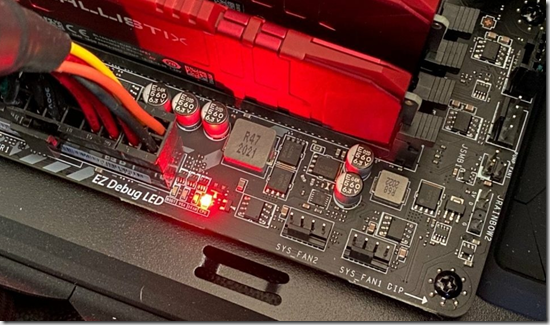

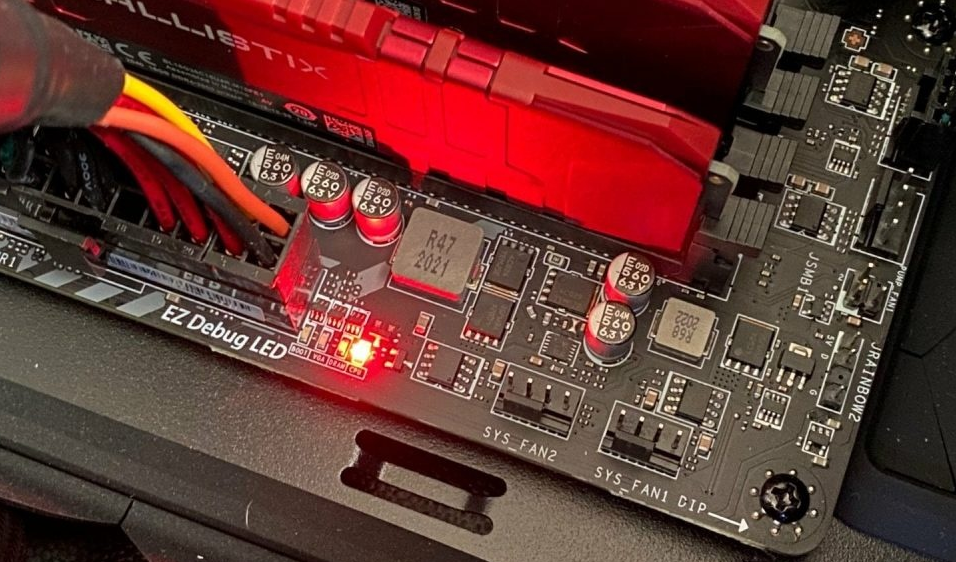

Seeing a red light on your motherboard can either be something harmless, like decorative lighting, or a sign that something is seriously wrong with your PC hardware. If your computer won't turn on or is having problems, and you notice a red light on the motherboard, it's important to figure out what's going on. Here's how to do it step-by-step.

Step 1: Check the Manual

Motherboards can be very different from one another, even from the same brand. So, the first thing you should do is look at the manual for your specific motherboard. You might have received a paper copy with your PC or motherboard, but you can also find a digital version on the manufacturer’s website.


Pic Courtesy: Quora

The manual will explain what the red light means based on where it is on the motherboard and whether it’s constantly on or flashing. It might also tell you if the light turns on when you power up the PC or stays on all the time. If the manual doesn’t explain much about the red light, look for other signs like beep sounds or other lights when you start the PC, and compare those to the manual.

Step 2: Reset the CMOS

Sometimes, changes in the BIOS settings or new hardware can cause issues, leading to the red light. Resetting the CMOS can help fix this.

To reset the CMOS:

  1. If your motherboard has a BIOS reset button, press it.
  2. If not, unplug the power cable, remove the CMOS battery from the motherboard, and hold the power button for about 30 seconds.
  3. Put the battery back in, reconnect the power cable, and try turning on the PC again.
Step 3: Check for CPU Problems

If the red light points to a CPU problem, try these steps:

  1. Reinstall the CPU: Take out the CPU cooler and processor, then carefully put them back in place. Make sure the CPU fan is spinning and the cooler is securely attached. If the cooler is loose, it could cause the motherboard to stop starting up.
  2. Update the BIOS: If you installed a new CPU in an older motherboard, it might need a BIOS update to support the new CPU. Use an older CPU that works with the motherboard to update the BIOS, then reinstall the new CPU. Check the motherboard’s compatibility list to make sure the new CPU is supported.
  3. Test the CPU: If possible, test the CPU in another computer to see if it’s working properly.
Step 4: General Troubleshooting
  1. Unplug Unnecessary Components: Disconnect all parts you don’t need to start the computer, like extra RAM sticks, storage drives, add-in cards, and USB devices. This can help identify the problem.
  2. Reseat the Memory: Remove and reinsert the RAM sticks. Try starting the computer with just one stick at a time to see if one is faulty.
  3. Check Power Connections: Make sure all power cables are securely plugged in, especially for the graphics card and CPU. Unplug and replug them to ensure they are connected properly.
Step 5: Replace Faulty Hardware

If you’ve tried everything above and the red light is still on, you might need to replace some hardware. Identifying the faulty part can be difficult, but removing and testing each component can help you figure it out.

Conclusion

A red light on your motherboard can be a sign of serious issues, but by following these steps, you can usually identify and fix the problem. Start with the manual, reset the CMOS, and check each component. If the problem persists, be prepared to replace the faulty hardware to get your computer running again.
